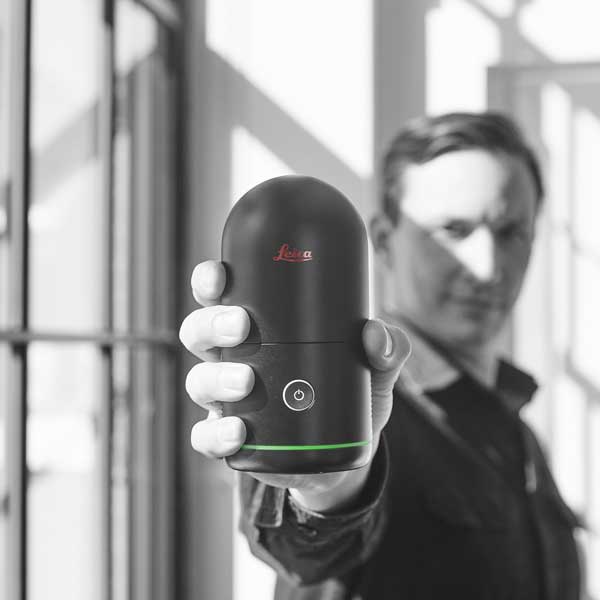

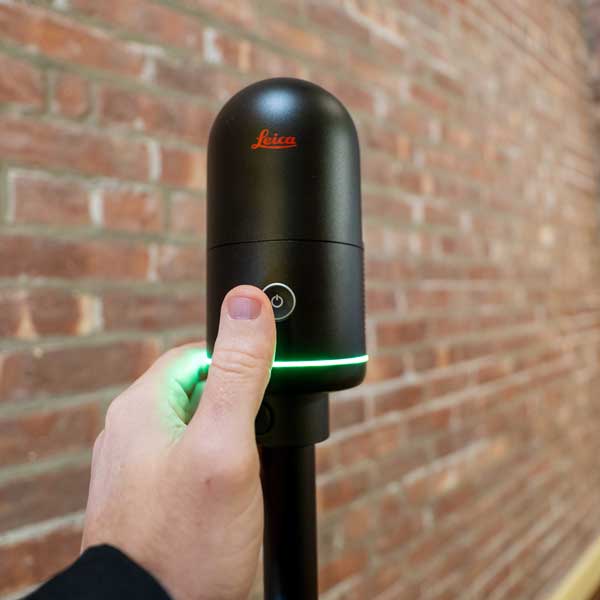

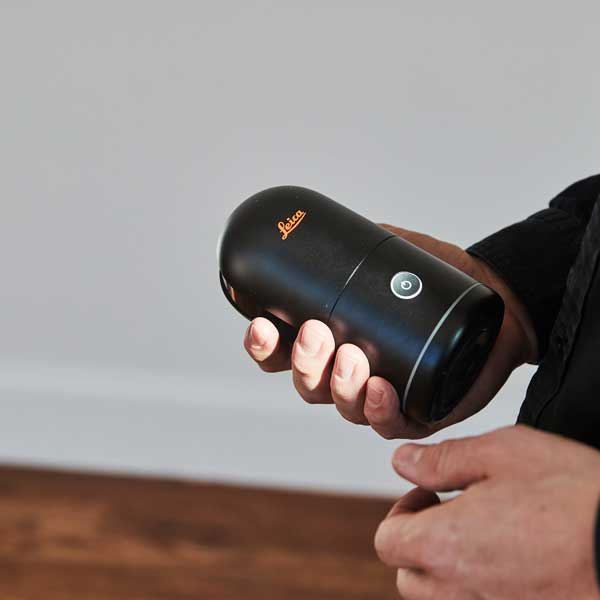

Leica BLK360 Imaging Laser Scanner

The next generation of the smallest and lightest imaging laser scanner.

The Leica BLK360 is an advanced precision imaging laser scanner. At the push of a button, users can capture a full scan with spherical images in only twenty seconds. Blaze through job sites with best-in-class rapid scanning that doesn’t compromise on quality, while the Visual Inertial System (VIS) Technology automatically combines your scans on-site to speed up your workflow and help you make sure your datasets are complete. The BLK360 enables users to work faster and smarter while getting the data they need immediately.

BLK360 data is valuable for many uses, from traditional AEC to mind-bending VFX and VR, and users can easily transfer and work with it in your software ecosystem to create immersive and highly accurate deliverables and experiences.

Key features:

• Four scan settings capture data in 7, 13, 30, or 75 seconds at 680,000 points per second
• Rich High-Dynamic Range (HDR) imagery with 5 bracket HDR
• Small and light, measuring 155x80mm and weighing just 850g with batteries
• 20 seconds for a full-dome scan with photospheres
• Visual Inertial System (VIS) automatically pre-registers scans in the field
• High-speed data transfer via USB-C and Wi-Fi

Users can control the imaging laser scanner with the Leica Cyclone FIELD 360 mobile-device app and easily pre-register captured scans enabled by the VIS technology. Image and point cloud data is streamed to a smartphone or tablet or final project data to Leica Cyclone REGISTER 360 PLUS or Cyclone REGISTER 360 PLUS (BLK Edition) via Wi-Fi, with full data synchronisation between devices. With automated workflows in both software offerings, the BLK360 dramatically streamlines the reality capture process. Simple export of LGS, RCP, or E57 files makes working with point cloud data downstream simple and efficient, allowing users to spend less time processing data and more time creating meaningful deliverables.

The BLK360 also includes a free companion app, BLK Live, allowing the user to control the imaging laser scanner and immediately view captured data for on-site feedback, quality assurance, quality control, and export E57 files. Available for iOS and Android.

The BLK360 also makes it easy to get your data into your preferred software and to share your scans with others. Directly upload your data to Reality Cloud Studio, powered by HxDR with cloud-based visualisation, collaboration and processing, allowing others to work with and download your data. Or transfer your data to Cyclone REGISTER 360 PLUS or export to E57 via USB-C or WLAN for Scan-to-BIM workflows.
